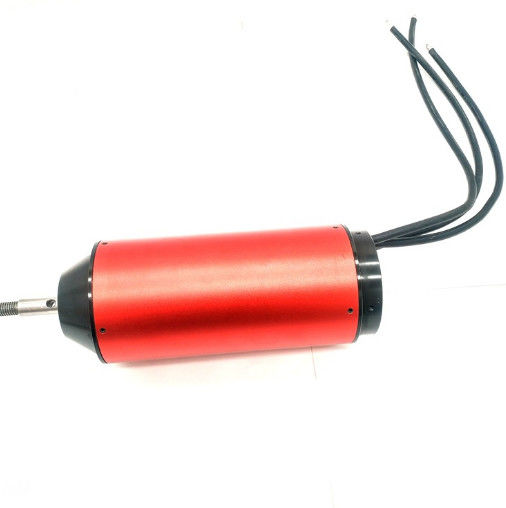

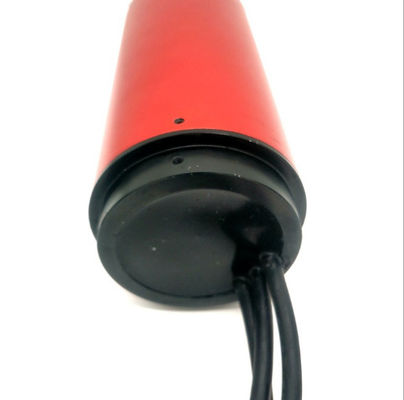

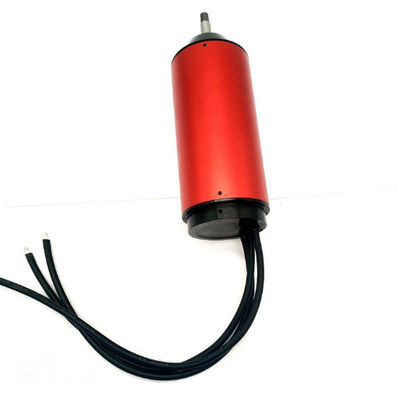

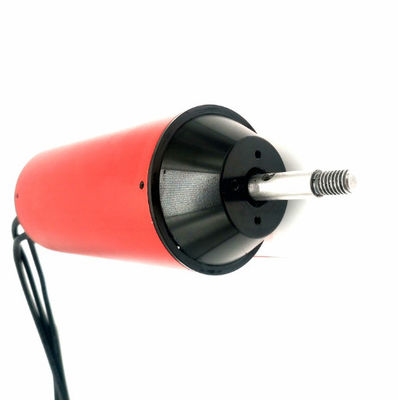

Low Resistance 70 * 141mm 200A Inrunner Brushless DC Motor

Large Image : Low Resistance 70 * 141mm 200A Inrunner Brushless DC Motor

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE/ISO/ROHS

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	with export carton
Delivery Time:	15-25days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	25000pc/month

Contact Now

Detailed Product Description

Construction:	Permanent Magnet	Commutation:	Brushless
Protect Feature:	Totally Enclosed	Speed(RPM):	100KV-400KV
Continuous Current(A):	120A	Efficiency:	IE 1
Product Name:	Waterproof Motor	Shaft:	10mm
Size:	70*141mm	Weight:	1.9kg
High Light:	waterproof Inrunner Brushless DC Motor , 10mm micro inrunner brushless motor , Low noise inrunner bldc motor

Low Resistance 70 * 141mm 200A Inrunner Brushless DC Motor

Product Description

Motor Kv:100-300
Maximum voltage: 48-100v
Maximum current 200A
No-load current: 1.7A (different kv will be different current)
Maximum power: 15kw and 8kw continous power
Resistance: 0.035ohm
Weight:1.9kg

Low Resistance 70 * 141mm 200A Inrunner Brushless DC Motor

Features

Stable performance
Low noise
Hard body, efficient heat dissipation
Manual winding, stable efficiency
Anti-off design, safety guarantee

Application:

Electronic door lock, intelligent switch, steam hair straightener (water jet straight hair outlet), label stripper, intelligent wear, intelligent machine 3D printing equipment products, curling device, safe, electric screwdriver, display frame, etc.
