Product Details:
Payment & Shipping Terms:
|
| Efficiency: | IE 1 | Direction Of Rotation: | CWCCW |
|---|---|---|---|
| Gearbox Material: | Metal | Gearbox Length: | 31.8mm To 77mm |
| Gearbox Dimension: | 42mm | Gearbox Ratio: | 1:3.7 To 1: 3736 |
| Shaft Material: | Carbon Steel Or Stainless Steel | Shaft Type: | D-cut, Round Or Keyway |
| Shaft Diameter: | 8MM-D | Motor Net Weight: | 1090g To 1683g |
| High Light: | 3000 Rpm bldc planetary gear motor,42mm dc planetary geared motor,800W brushless motor planetary gearbox |
||
3000 Rpm 800W 42mm Brushless Motor Planetary Gearbox
Motor Specifications (Can be Customized)
|

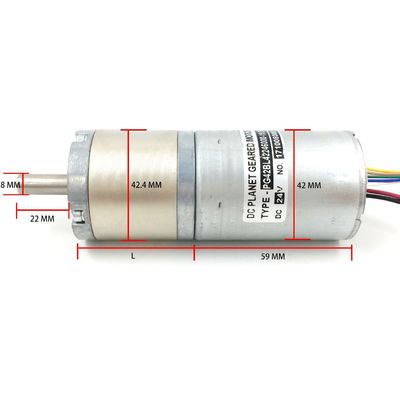

Dimension
|
42mm*42mm*(59+L)mm
|
|
Voltage
|
DC Input 12v,24v,36v,48v,60v (Can be Customized)
|
|
Power
|
12/25/50/75/100/125/200/250/300 to 800w (Can be Customized)
|
|
Speed
|
Variable speed from 1-3000rpm (Can be Customized)
|
|
Torque
|
0.3/3/5/20/25/30 to 50N.m (Can be Customized)
|
|
Shaft
|
shaft Dia: 8mm-D
shaft material: 40Cr /Carbon Steel /Stainless Steel Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized) |
|
Bearing At Output
|
Ball bearing / Sleeve bearing
|
|
Accessories
|
Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
|
|
Weight
|
According to gear stage(1090g to 1683g)
|
|
Note
|
Motor specs such as voltage, speed, torque, shaft can be customized. Please contact us if didn't find a suitable motor from our specifications.
|
Motor Details
1. INTEGRATED SHAFT
Better concentricity
High transmission efficiency
Never fall off
2. PLANETARY GEARBOX
Stronger torque than spur gear
Reduction ratio range from 1:3.3 to 1:3736
3. PLANETARY GEAR
Long service life
Plastic/POM/Steel gears are available
4. CUSTOMIZED SERVICE
Shaft, encoder and brake can be customized
