Product Details:
Payment & Shipping Terms:
|
| Speed(RPM): | 150r/min | Continuous Current(A): | 22A |
|---|---|---|---|
| Efficiency: | IE 1 | Application: | Power Tools |
| Rated Voltage: | 24VDC | Color: | Black |
| Diameter: | 80MM | POWER: | 400W |
| Rated Speed: | 1500rpm | MOTOR TORQUE: | 2.55N.M |
| High Light: | 400W bldc planetary gear motor,24V dc planetary geared motor,1500 Rpm brushless motor planetary gearbox |
||

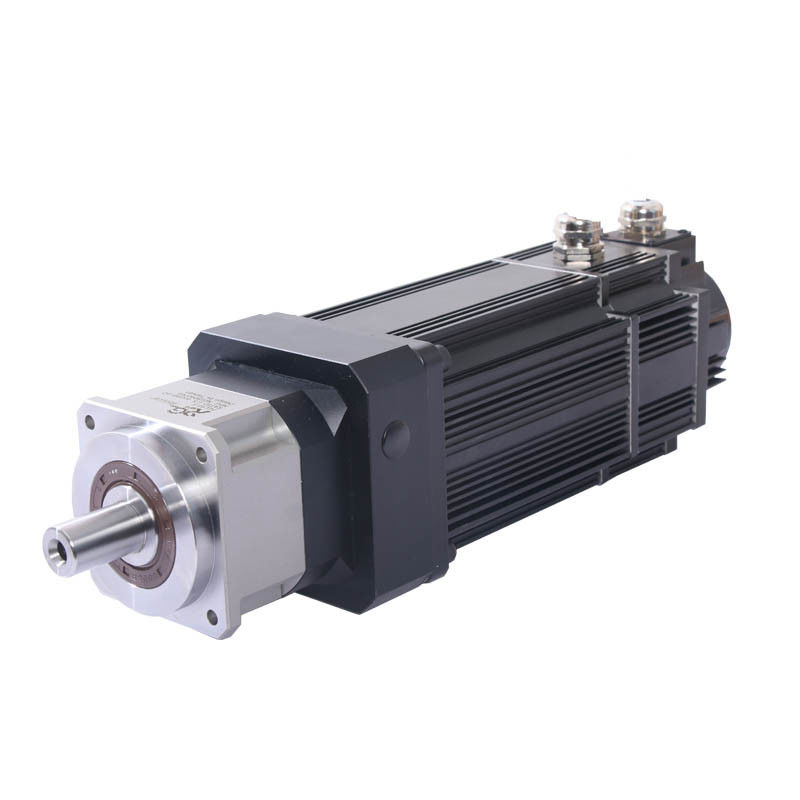

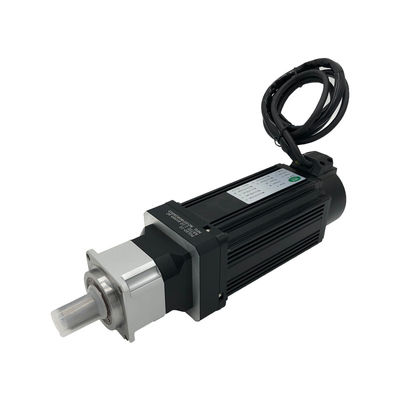

24V 400W 1500 Rpm BLDC Planetary Gear Motor
Product Features:
* High Torque to inertia ratio&up to 15000Nm/kgm²
* Fast dynamic response *time constant <20ms
* Wide speed adjusting&feedback up to 1000:1
* Steady speed precision up to 0.5%
* High overload,2Mn/30s,3.5N.m/10s
* Small volume and light
* Silent,the lowest noise is only 45dB(A)
* Protected with IP65,Class F insulation
Application
This bldc servo motor is widely used in Automatic cruising robotic arm,McNamee wheel mobility platform,smart self driving robot vehicle platforms/kits,Rubber Track,Automatic Guided Vehicle(AGV),Self Guided Vehicle .We have mature technology and can provide technical support for you.
| Name | Brushless DC Planetary Gear Motor | Volt | 24v |
| Power | 400w |
Rated Torque |
2.55Nm |
|
Rated Speed |
1500rpm |
Rated Current |
21.3A |
|
Peak Torque |
7.65Nm |
Line Resistance |
0.025Ω |
|
Rotor Constant |
0.066mH |
Torque constant |
0.119Nm/A |
|
Back EMF Constant |
10.9/kr/min |
Rotor Inertia |
250Kg.m2×10-6 |
|
Mechanical Time Constant |
0.63ms |
Electrical Time Constant |
0.5ms |
|
Encoder |
2500ppr | Weight | 3.9kg |
Industry class
1. The altitude should be over 1000 meters above sea level
2. Environment temperature:+5℃~+40℃
3. The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃. 24V 400W Brushless DC Servo Motors
