Product Details:
Payment & Shipping Terms:
|
| Voltage(V): | 220V | Output Power: | 1.5 KW |
|---|---|---|---|
| Torque: | 140 N.m | Protect Feature: | Totally Enclosed |
| Speed(RPM): | 150 Rpm | Continuous Current(A): | 6 A |
| Application: | Big Ceiling Fan | Rated Voltage: | 3 |

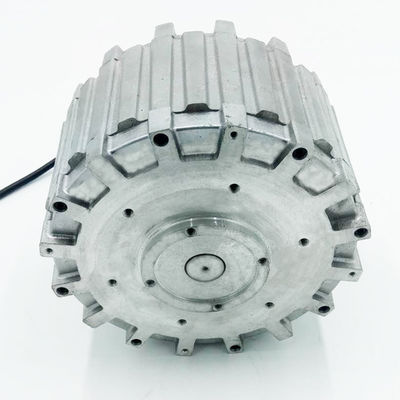

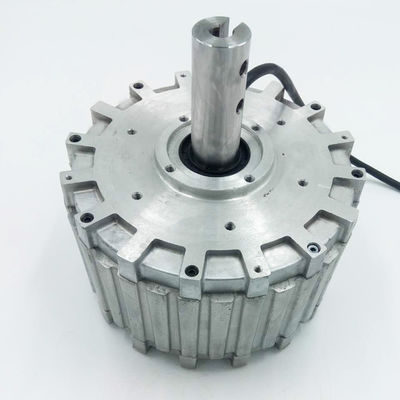

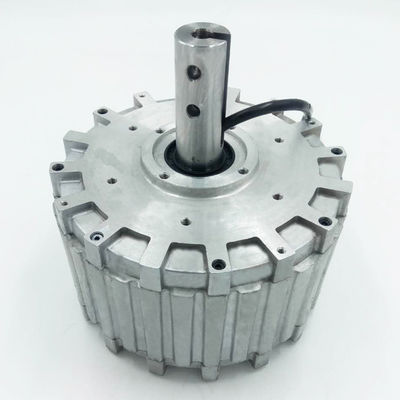

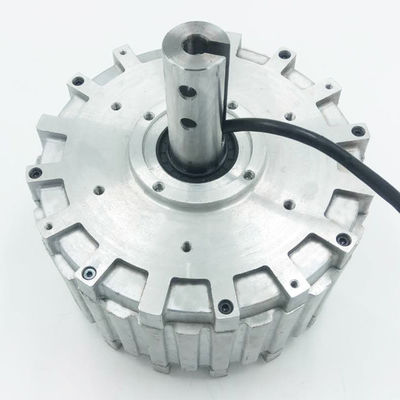

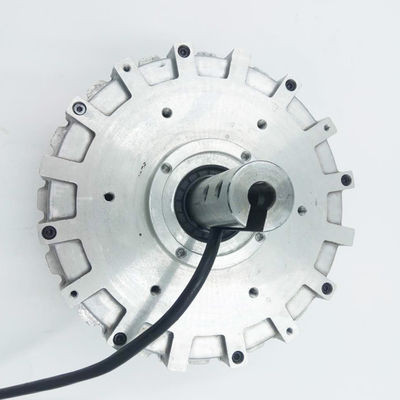

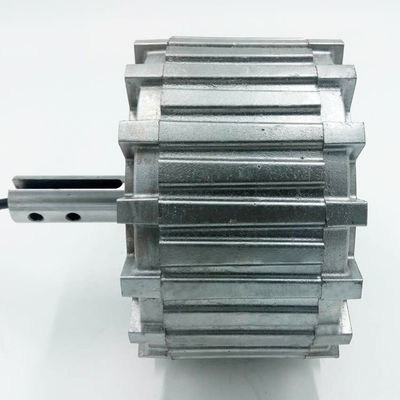

| High Light: | 220V outer rotor bldc motor,1.5 KW industrial brushless dc motor,150 rpm Outer Rotor Brushless DC Motor |
||
The motor parameters:
|
The Rated Voltage:
|
DC315V
|
The rated torque:
|
140 N.m
|
|
The rated power:
|
1500 W
|
The noise:
|
60 dB
|
|
Rated speed:
|
150 rpm
|
The highest speed:
|
300 rpm
|
|
Pretection grade:
|
IP56
|
Operation mode:
|
S1
|
|
Insulation grade:
|
F
|
Vibration:
|
1.0 mm/s
|
|
Net weight:
|
25.2 kg
|
Grosss weight:
|
31.6 kg
|
|
Model Number
|
Voltage(V)
|
Power(W)
|
Speed
(RPM) |
Blade
Diameter (meter) |
Air Volume(m³/min)
|
Noise
|
Blade Quantity(Piece)
|
Weight
(Kg) |
|
PMSM330-735
|
220/380
|
1560
|
50
|
7.35
|
13185
|
40
|
6
|
158.15
|
|
PMSM330-675
|
220/380
|
1152
|
55
|
6.75
|
12862
|
40
|
6
|
152.75
|
|
PMSM330-625
|
220/380
|
1000
|
60
|
6.25
|
12261
|
40
|
6
|
148.25
|
|
PMSM330-550
|
220/380
|
800
|
65
|
5.5
|
11963
|
40
|
6
|
141.5
|
|
PMSM330-520
|
220/380
|
750
|
70
|
5.2
|
11175
|
40
|
6
|
138.8
|
|
PMSM255-470
|
220
|
700
|
75
|
4.7
|
7075
|
40
|
6
|
103.4
|
|
PMSM255-420
|
220
|
530
|
80
|
4.2
|
5213
|
40
|
6
|
99.8
|
|
PMSM255-360
|
220
|
410
|
95
|
3.6
|
3326
|
40
|
6
|
93.8
|
|
PMSM255-220
|
220
|
330
|
115
|
2.2
|
1669
|
40
|
6
|
81.8
|
Features and advantages:
