Product Details:
Payment & Shipping Terms:
|
| Type: | Airplane | Material: | Metal |
|---|---|---|---|
| Radio Control Style: | RC Hobby | Feature: | Low Temperature |
| Voltage(V): | 48 | Style: | Radio Control Toy |
| High Light: | Low Current sensorless bldc motor,28mm small brushless dc motor,28mm sensorless bldc motor |
||

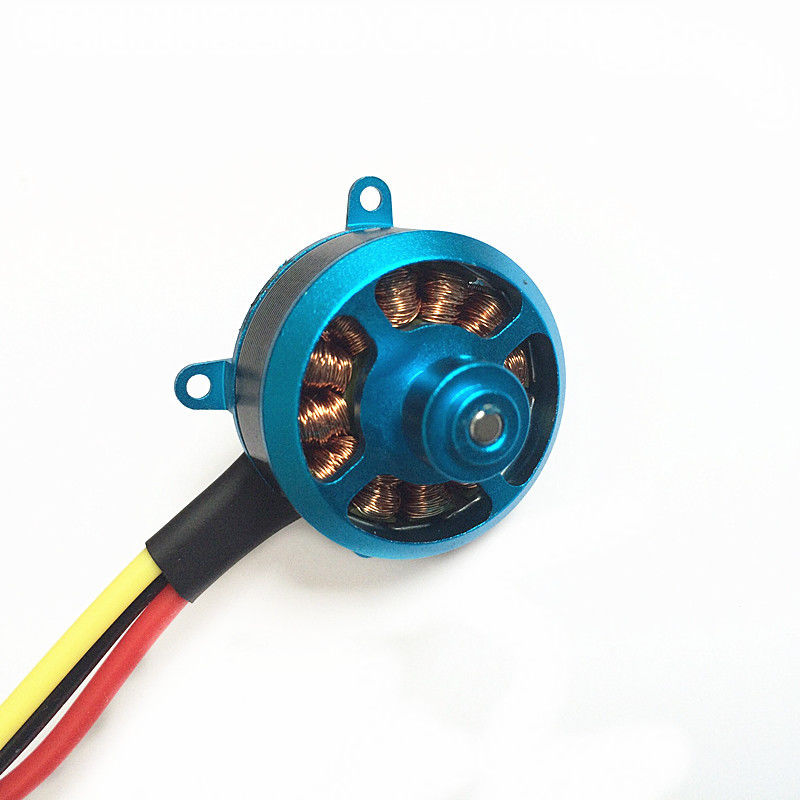

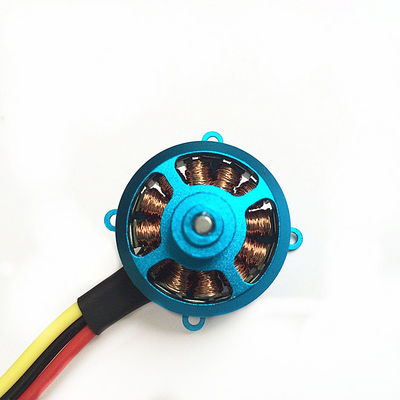

Low Electromagnetic Interference 28mm Sensorless BLDC Motor
Features
- High Efficiency
- Handwound
- Low Current
- Low temperature
- Long Service Life
- Low Electromagnetic Interference
- All materials can normally work at high temperature
- Precision Ball Bearings For Smooth Operation
- Minimal Motor Maintenance Required
Specifications
| Model | KV |
Shaft /mm |
Max A | Max W | Efficiency | Thrust/g | Propeller |
ESC /A |
weight/g | Li-Po |
Diameter /mm |
Length /mm |
| ST2204C | 1450 | 3 | 6.9 | 50 | 76% | 150~350 | 9‘’ | 10A | 19 | 1~2 | 28mm | 13mm |
| 1650 | 8.4 | 62 | 78% | 200~400 | 8‘’ | |||||||
| 1750 | 9.5 | 70 | 78% | 300~420 | 7‘’/8 | |||||||
| ST2206C | 1500 | 3 | 12 | 88 | 80% | 200-400 | 8‘’/9‘’ | 20A | 26 | 1~2 | 28mm | 23mm |
| 1900 | 16 | 118 | 80% | 400-600 | 8‘’ |
