Product Details:
Payment & Shipping Terms:
|
| Voltage(V): | 36-48V | Power: | 600W |
|---|---|---|---|
| Torque: | 2Nm | Efficiency: | IE 4 |
| Application: | Skateboard, Racing Car, RC Boat, Industry Useage | KV(RPM/V): | 190 |
| No Load Current At 7.2V (A): | 1A | Peak Current (A): | 18A |
| Motor Diameter*Length (mm): | D50*L55 | Weight (g): | 420 |
| High Light: | 190KV Sensored Brushless DC Motor,600W sensored bldc motor,600W hall sensor brushless motor |
||

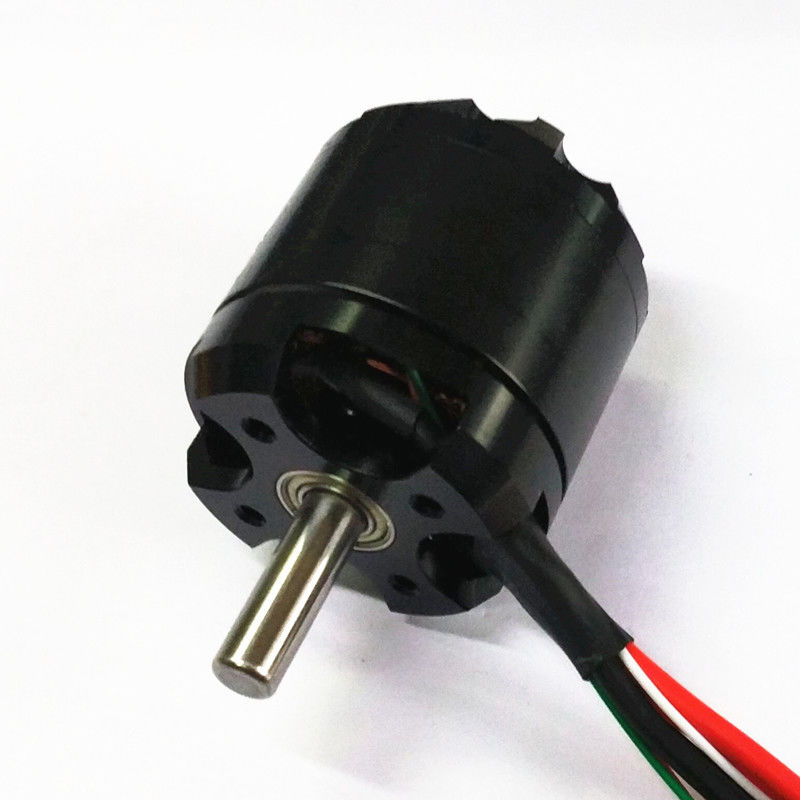

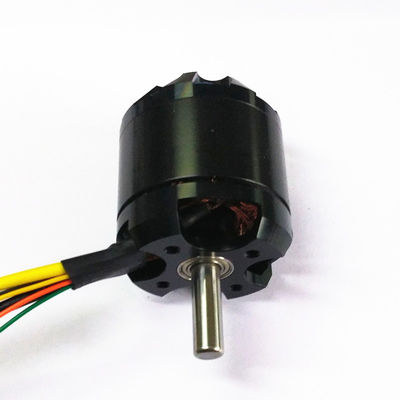

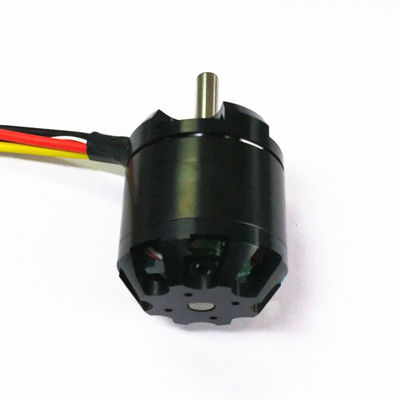

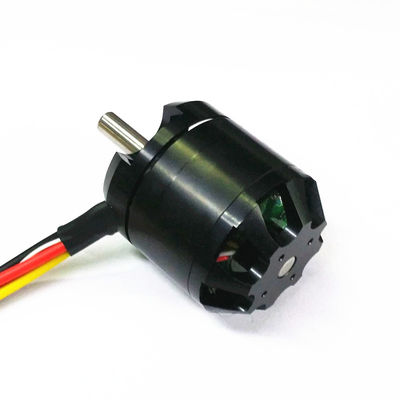

190KV Peak Current 18A 600W Sensored Brushless DC Motor
Product Description
The defect of regular motor in current market is that the detection of sensor will be intervened by the electromotance caused by the coil due to the fact that the sensores of regular ones decide the phase by the direct detection of working magnet position.
The rotator of our new motor contains a magnet that is processed especially for the phase position detection which let the magnet itself stay far away from the coil to avoid the intervention and therefore get the more smooth operation and high performance.
features
* Offering the stable and steady start.
* Obtaining the powerful impulse together with stronger torque.
* The acceleration is sharper and smoother.
* The motor contains the gold welded banana connecotors.
* High-quality silicon steel sheets.
* High accurate balanced rotator.
Product Parameters
| KV(RPM/V) | 190KV |
|
No Load Current at 7.2V (A) |
1A |
|
Working Voltage Range (V) |
36-48V (Here data sheet tested for 37.8V) |
| Max Power (W) | 600 |
| Peak Current (A) | 18A |
| Max Efficiency (%) | 90% |
|
Working Temperature Range (C/F) |
130℃ |
|
Motor Diameter*Length (mm) |
D50*L55 |
| Net Weight (g) | 420g |
| Connector Type | 4mm golden plug |
| Wire Length (mm) | 270mm |
| Hall Sensor Wire Length (mm) | 440mm |
| Hall Sensor Connector | JST 6pins |
| Output Shaft (mm) | D6mm*L20mm |
We can custom made whatever brushless dc motor you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.
Your Requirements:
1. Please choose inrunner motor or outrunner motor you need.
2. Do you have motor diameter and length limited?
3. What working voltage you will use for this motor?
4. What's your expected rated power?
5. What's your expected RPM?
6. You battery pack can bear how high peak current?
7. You estimated yearly sales qtys?
8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.
9. Other requirements if you need, for example, wire length, connector types and so on.
