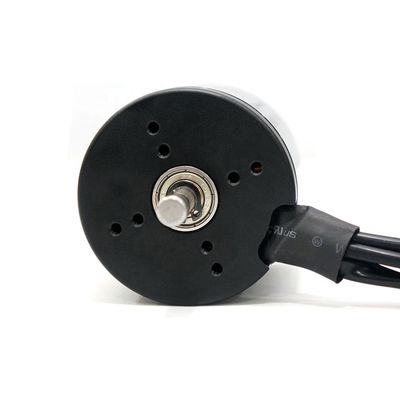

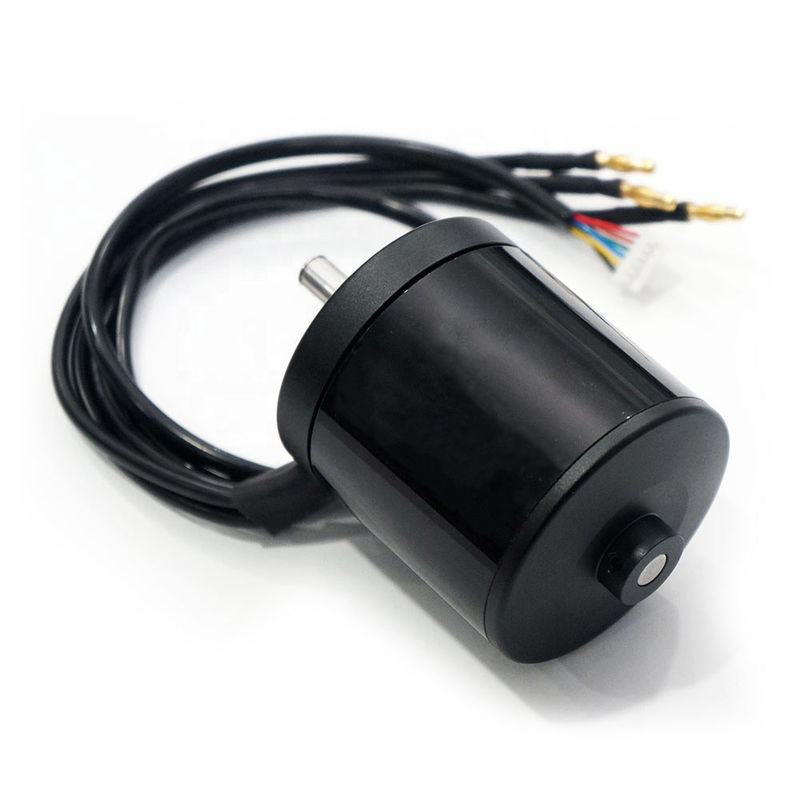

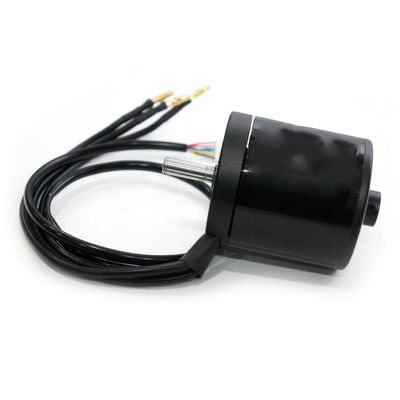

Shaft 8mm Robots 65A 190KV Sensored BLDC Motor
Products Description
| Name |
Sensored Brushless DC Motor |
KV |
190KV, can be customized |
| Idle Current |
0.8A |
Max Current |
65A |
| Input Volt |
2-12S |
Max Output Watt |
3550W |
| Rated Current |
60A |

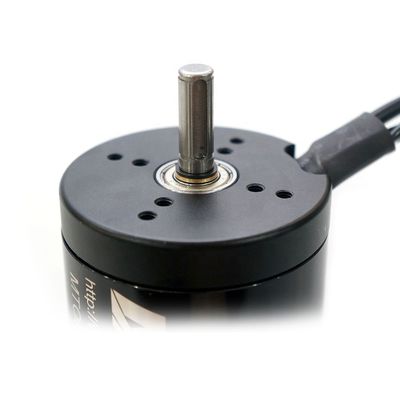

Shaft |
8mm |
| Output Shaft Length |
26mm |
Internal Resistance |
0.0402 |
| Hall Sensor |
Yes |
Motor Cable Length |
240mm |
| Sensor Cable Length |
500mm |

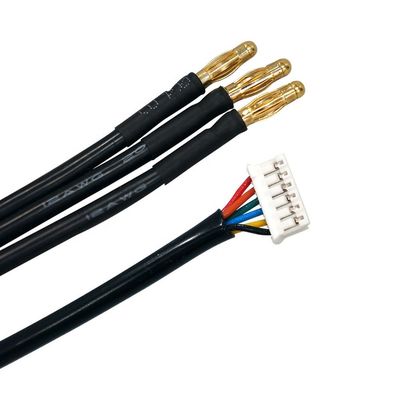

Motor Connector |
4mm Male Connector |
| Hall Sensor Connect |
6pin 2mm Pitch JST Connector |
Battle Hardened |
Yes |
| Keyway |
With 3mm keyway, key is not included |
Cover |
Sealed Cover, splash proof and
dustproof
|
| Application |
Electric skateboard, longboard, mountainboard, fighting robots, e-bike, e-scooter, walking robots, delivery robots, etc., |
Motor Components and Construction
Top Cover and Bottom Cover
Alloy Aluminum, Anodizing, Dust-proof; Black sealed closed cover, IP54 splash waterproof.
Magnets
- NdFeB N45SH material, 14 Poles, strong magnetism.
- Glued by Loctite 326 structural adhesive.
- Max 115°C.
- Battle hardened
- Prevent magnets fall apart, extend motor lifespan.
Stator
1. Hall PCB Board:
- Can detect motor position when start-up, make motor smooth and fast start-up;
- Detect 120°C temperature.
2. Copper wire:
- High temperature Oxygen-free copper wire, can take 220°C temp. ;
- Wind by machine, high accuracy;
- Insulation paint coated, prevent wire dispersion. Anti-oxidation, good conductivity.
3. Silicon Sheet: 0.2mm, the thinner of the silicon sheet, the less consumption of the motor.
