High Overload 0.16Nm 24V Frameless Brushless DC Motor

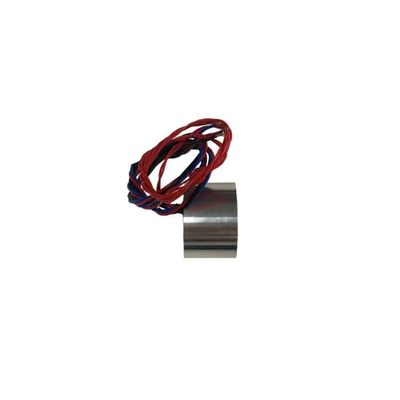

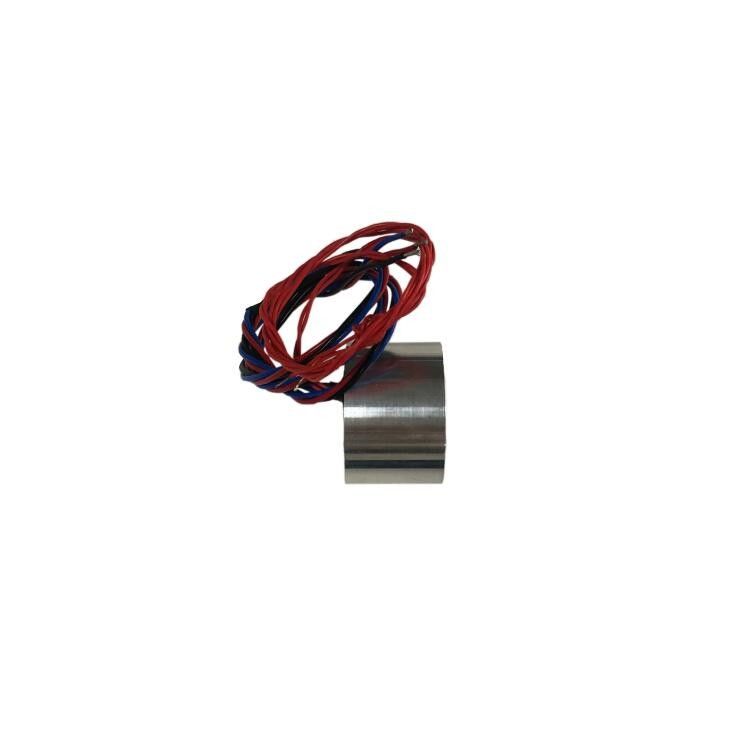

Large Image : High Overload 0.16Nm 24V Frameless Brushless DC Motor

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE/ISO/ROHS

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	with export carton
Delivery Time:	15-25days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	25000pc/month

Contact Now

Detailed Product Description

Protect Feature:	Insulation Class B	Continuous Current(A):	2.69A
Motor Type:	Brushless DC Motor Frameless Motor	Rated Voltage:	24VDC
No Load Speed:	4480rpm	Rated Speed:	2800rpm
Rated Torque:	0.16Nm	Rated Output Power:	46.9 W
Highlight:	2800rpm micro brushless dc motor , 20mm Frameless Brushless DC Motor , 24V lightweight brushless dc motor

High Overload 0.16Nm 24V Frameless Brushless DC Motor

Product Description

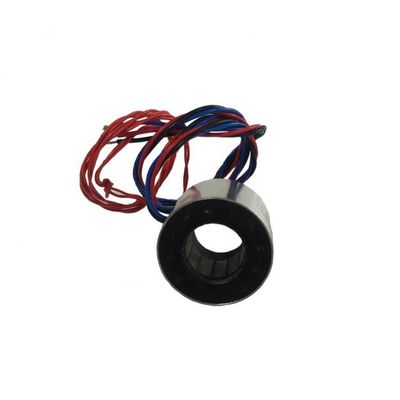

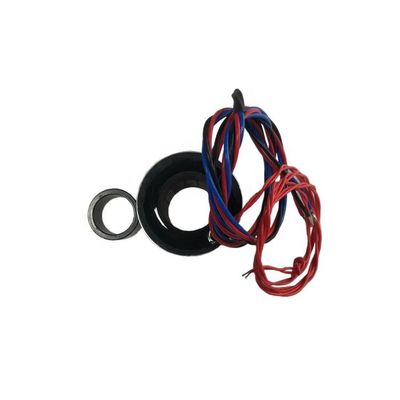

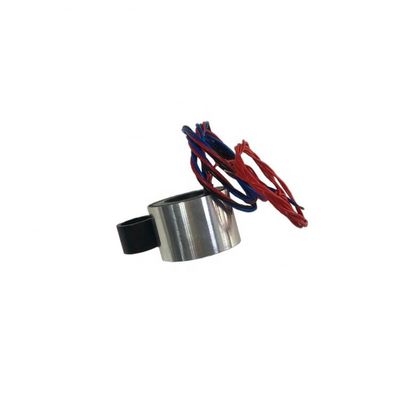

DC Frameless Motor

Frame size:40mm

Rotor diameter:20mm

This motor has high power density, high overload ability and easy to mount.

Product Paramenters

	Unit	Value
Rated voltage	VDC	24
No-load speed	RPM	4480±10%
Rated speed	RPM	2800±10%
Rated torque	Nm	0.16
Rated current	A	2.69
Rated output power	W	46.9

Outside Drawing

Our Services

- Quality assurance
- Proactive behavior and innovative thinking
- Technical consultancy and support in pre- & after sales
- Competitive prices and on-time deliveries
- Professional, cooperative partners in Europe and Asia

FAQ

1. How to choose a suitable electric motor?
If the usage with defined voltage,speed and torque ,size of the motor are clear, just find out the close performance one. if not
sure, ask for our help.

2. How can I get the sample motor to check quality and do performance test?
When the requirements are clear to us,we can provide sample.

3. Can you provide detailed technical data and drawing?
Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.

4. How to control the products quality in your company?
With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
