Name: 10 Inch Water Cooled Brushless DC Motor
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
Availability: InStock

Contact Now

Detailed Product Description

Voltage(V):	60V	Output Power:	500W
Usage:	Electric Motorcycle	Torque:	50-200N.m
Construction:	Permanent Magnet	Protect Feature:	Waterproof
Speed(RPM):	450-500	Axle Configuration:	Double
Magnet Height:	27mm	Waterproof Grade:	IP54
Highlight:	IP54 Water Cooled Brushless DC Motor , 3 Phase Water Cooled Brushless DC Motor , 10 Inch Water Cooled Brushless DC Motor

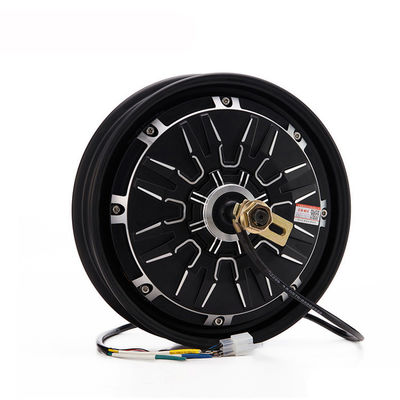

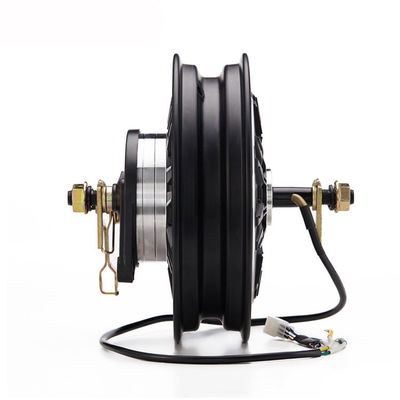

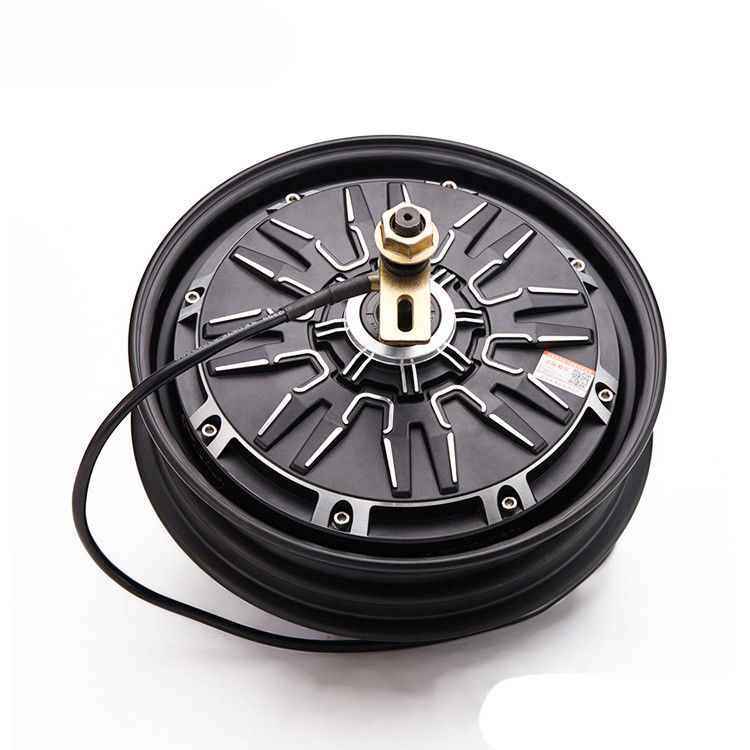

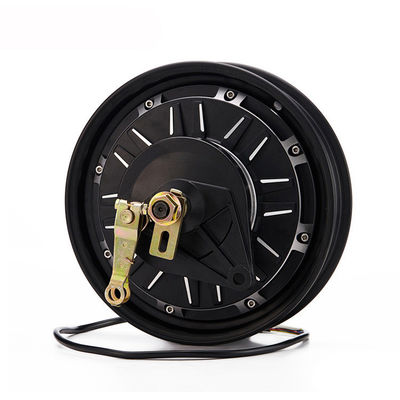

10 Inch Water Cooled Brushless DC Motor

Specification:

Motor Type	Brushless Direct Current Motor(BLDC Motor)
Axle Configuration	Double
Wheel Rim	10 inch
Rated Speed	40km/h
Voltage	60V
Magnet Height	27mm
RPM	450-500
Brake System	Drum Brake/Disc Brake
Hall Sensors	1/2
Hall Sensor Phasing	120°
Number of motor phases	3
Max Efficiency	93%
Rated Out Power	500w
Number of Pole Pairs	26
Cross Section of Phase Wire	2.5 square
Waterproof Grade	IP54
Color	Black/white etc.
Package	Carton

10 Inch Water Cooled Brushless DC Motor

Notice:

Motor could work 120 ℃ in half an hour without damage.

Suggestion (Setting of Controller)

When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.

When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.

Tag:

3 Phase Water Cooled Brushless DC Motor,
