| Voltage Range: | 12 & 24v Dc (240v Also Available) | Power Output Range: | 15 To 40 Watts |
|---|---|---|---|
| Speed Range: | Up To 10,000rpm | Operational Temperature: | -20°C To +40°C |
| Insulation Class: | F(consult Us For Class B) | Housing Type: | Closed(ventilated Also Available) |
| High Light: | 24V Permanent Magnet Brushless DC Motor,10000 Rpm Permanent Magnet Brushless DC Motor,67Nm Permanent Magnet Brushless DC Motor |
||

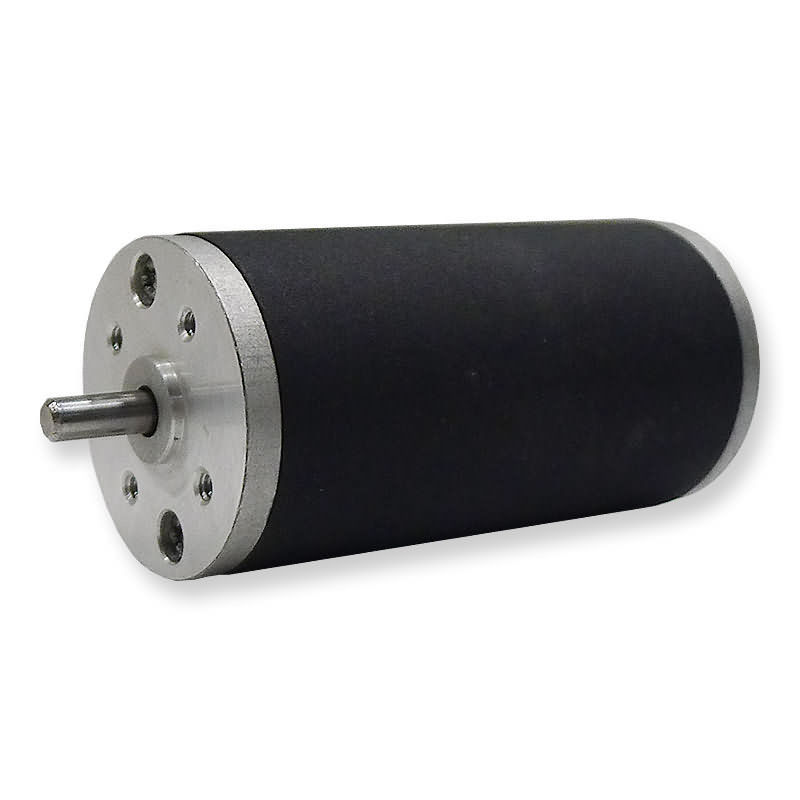

67Nm Permanent Magnet Brushless DC Motor
General specification
|
Voltage Range |
12 & 24v dc (240v also available) |
|
Power Output Range |
15 to 40 watts |
|
Speed Range |
up to 10,000rpm |
|
Operational Temperature |
-20°C to +40°C |
|
Insulation Class |
F(consult us for class B) |
|
Bear Type |
High quality ball bearings |
|
Housing Type |
Closed(ventilated also available) |
Performance Data
|
Part Number |
Voltage |
Rated Power |
Rated Speed |
Rated Torque |
Rated Current |
No load Speed |
Length |
|
Units |
V |
W |
rpm |
Nm |
A |
rpm |
mm |
|
40ZYT56-12V |
12 |
17 |
4950 |
33 |
1.8 |
6000 |
56 |
|
40ZYT61-12V |
12 |
23 |
5100 |
43 |
2.39 |
6100 |
61 |
|
40ZYT78-12V |
12 |
29 |
5000 |
67 |
2.92 |
5000 |
78 |
|
40ZYT56-24V |
24 |
17 |
4950 |
33 |
0.89 |
6100 |
56 |
|
40ZYT61-24V |
24 |
23 |
5100 |
43 |
1.17 |
6100 |
61 |
|
40ZYT78-24V |
24 |
29 |
4200 |
67 |
1.46 |
5000 |
78 |
Description
Hybrid permanent magnet DC motor are widely used in rotary pumps, clay pigeon traps, electric vehicles, golf carts, hoists, winches and a multitude of other applications
Customization Options
Brake:
All permanent magnet DC motors can be supplied with a choice of 12 or 24V parking brake. An optional manual brake release is also available.
Encode:
permanent magnet motors can be supplied with a variety of encode types and resolutions.
Custom shaft:
All permanent magnet DC motors are available to order with a wide selection of custom shaft configurations.
Applications:
Dimensions in mm
