Product Details:
Payment & Shipping Terms:
|
| Use: | Vehicles & Remote Control Toys | Available For: | 1/18 Buggy, 1/16 Truggy, 300mm-500mm Boat |
|---|---|---|---|
| Sensored Or Sensorless: | Sensorless | Number Of Poles: | 2 Poles |
| Max Voltage: | 8.4V | KV(RPM/Volt): | 4500 |
| DiameterxLength (mm): | 20.0x40.0mm | Weight: | 57g |
| High Light: | Sensorless Inrunner Brushless DC Motor,Micro Inrunner Brushless DC Motor,8.4V Inrunner Brushless DC Motor |
||
8.4V Inrunner Brushless DC Motor
Product Description
Brushless Motors, are made by high-precision CNC machine, hand-wound, as well as high-grade magnets to improve efficiency. The Motor delivers faster speeds, longer runtime, and extended motor life, to make our customer products continue to deliver high-performance electric drive.
Caution:
a. Please use appropriate propeller,inappropriate one will cause poor performance and may damage the motor.
b. Do not run the motor more than 60 seconds under electrostatic environment, it may cause motor overheating or damage.
c. Make sure the motor inside is clear before using.
d. Inappropriate ESCs will cause the motor perform worse. Please use the matched ESC.
e. Pay attention to screw length during assembly, the longer screw may damage motor coil.
Product Parameters
Model |
Max Amps |
Max Voltage |
Max Power |
KV (RPM/V) |
Mounting hole depth |
Mounting Screw |
Shaft Diameter |
Shaft Length |
Length |
Plug |
Weight |
| RT-2030 | 13A | 8.4V | 109W | 5800 | 2.6mm | Φ16 M2*6 | 2mm | 10mm | Φ20×30mm | 2.0mm | 37g |
| RT-2040 | 20A | 8.4V | 168W | 4500 | 2.6mm | Φ16 M2*6 | 2.0/2.3mm | 10mm | Φ20×40mm | 2.0mm | 57g |

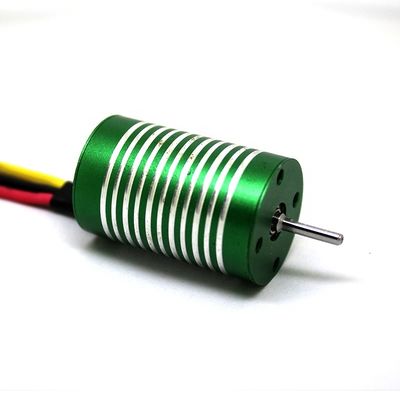

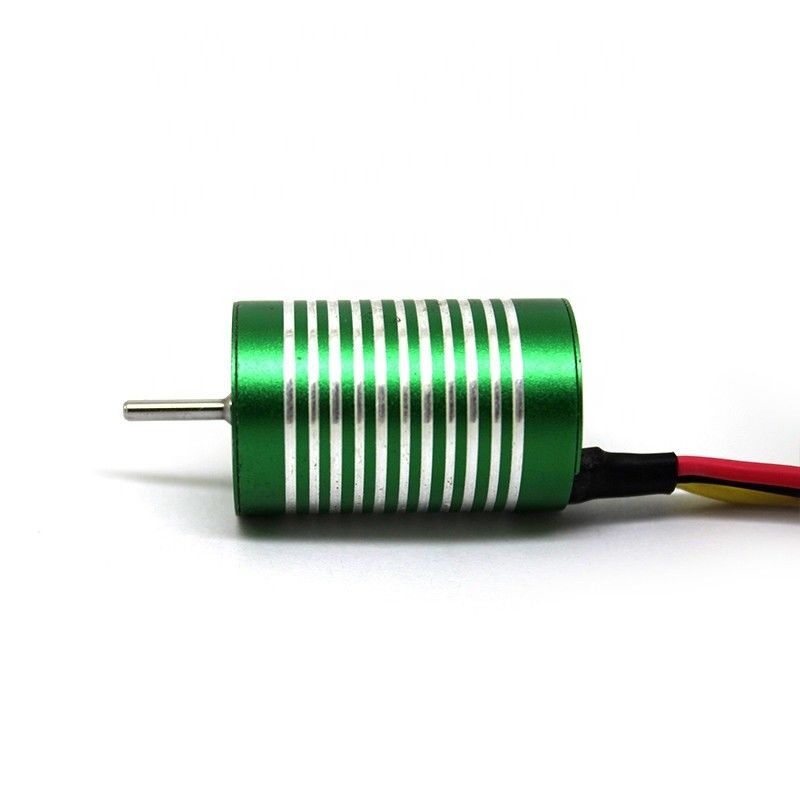

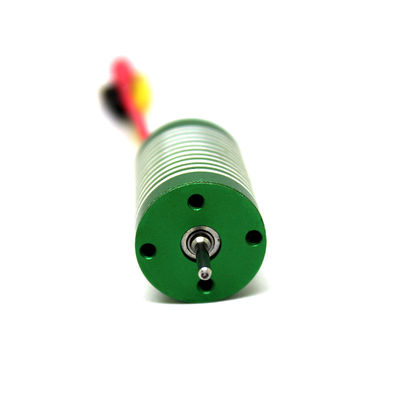

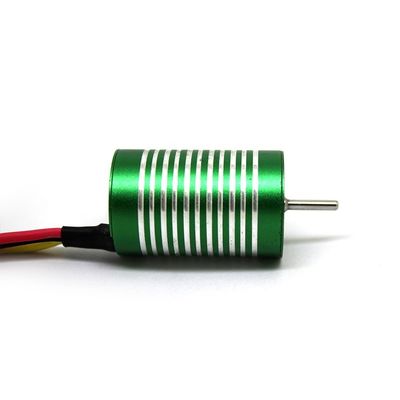

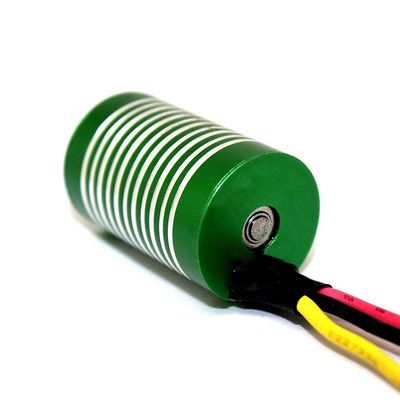

Product Pictures
